BalIy Alpha 2 PRO Wave IDeck 300cd/M² Capacitive Touch 60Hz-75Hz

Name: BalIy Alpha 2 PRO Wave IDeck 300cdM Capacitive Touch 60Hz75Hz
Brand: Anwell Touch
Price: 1 USD

Wholesale BalIy Alpha 2 PRO Wave IDeck 300cd/M² Capacitive Touch 60Hz-75Hz from china suppliers

Brand Name : Anwell Touch

Model Number : AW150CB-GB02

Certification : CE,RoHS,FCC

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiable

Payment Terms : TT

Supply Ability : 1000 pieces per Month

Delivery Time : 8-15 working days

Packaging Details : Standard carton box

Brightness : 300cd/m²

Response : 5 msec

Viewing Angle : 178/178(°)

Touch Technology : Capacitive touch

Touch Cover : Glass T=1.8mm

Touch Construction : G+G

Interface : USB-B Female

Input Source : Finger

Power consumption : 25W

Operating Temperature : -10 ~ +65(°C)

Humidity Range (RH) : 0°C~45°C

Active Area : 373.8mmx71.6mm

Contact Now

Product Description

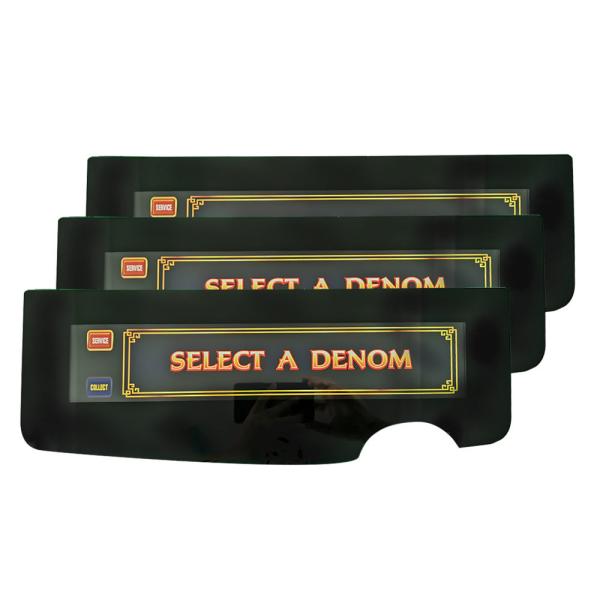

BalIy Alpha 2 PRO Wave iDeck
The same size as the prototype, dedicated to upgrade and replace the touch button panel on the BalIy Alpha 2 pro Wave model

Net Weight	1.62kg
Gross Weight	2.5 kg
Product Dimension	465mm x 160mm x 39mm

Specifications
BalIy Alpha 2 PRO Wave iDeck
Model	AW150CB-GB02
Resolution	1920x1080
Colors	Silver
Number of Touches	Single-touch ( multitouch optional)
Brightness	300cd/m²
Response	5 msec
Viewing Angle	178/178(°)
Contrast Ratio	1000:1
Backlight Lifetime (hours)	LED / 50,000h

Touch Technology	P-CAP
Touch Connector	USB
Touch Life (Contacts)	Unlimited
Surface Hardness	7H

Output	DC12V
Frenquency	60Hz-75Hz
Power consumption	25W

Operating Temperature	Operating:0°C~45°C Storage:-20°C-55°C
Humidity Range (RH)	Operating:10%-80%RH, 40"C Storage:10%-80%RH, 40°C
Housing material	Metal
